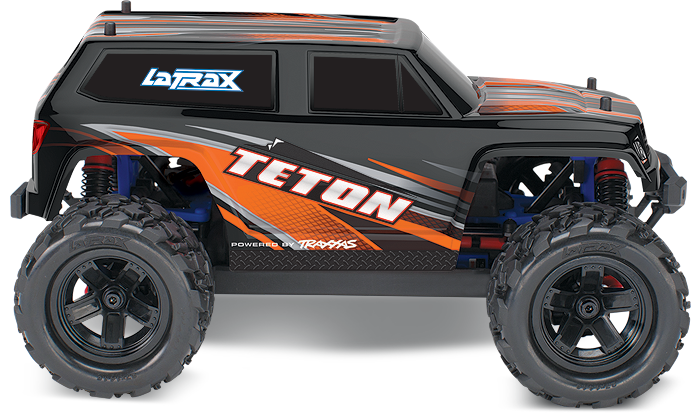

라트랙스 테톤 – 1/18 스케일 4륜구동 몬스터 트럭
22년도 신형제품으로 출고됩니다 (기본 ID트랙사스잭 ) 충전기미포함
VIDEO
본제품은 바로 충전후 주행제품
조립킷 + 모터 + 변속기 + 서보 + 밧데리 +12V DC충전기 + 100~150미터 까지 조종되는 송수신기가 2.4GHz
Waterproof Power System for All-Weather Driving Excitement
Rugged Off-Road Monster Truck Fun and Versatility
The Teton™ packs big all-weather adventure into a powerful 4-wheel drive off-roader that's quick
and versatile for radio-controlled fun anytime, anywhere. This tough rig checks in at 1/18 scale,
yet its purposeful design easily tackles rugged back-road terrain. The steep approach angle lets
the grippy tires attack large rocks and tall curbs with aggressive climbing action. Smooth, long-travel
oil-filled shocks keep the suspension motion in check over rocky terrain, and smooths out the
landings when coming off of big jumps. Strength on the trail is assured with proven shaft drive, metal ring
and pinions in the differentials, and smooth, long wearing ball bearings. Roosting dirt and slinging gravel
are just part of the fun as the fully proportional electronic speed control and powerful motor deliver punchy
acceleration and exciting speed.
Teton is built to go the distance, and is always ready for your next off-road adventure. All-weather electronics
rule over the elements for driving fun through streams, mud, and snow. The long range 2.4GHz radio system
is always in command. The LaTrax Teton is perfect for any age driver or skill level and comes fully assembled,
painted, and Ready-To-Explore™ with included 6-cell 7.2V NiMH battery pack and charger. Everything you
need is included in the package. The LaTrax Teton is Powered By Traxxas; protected by world-class Traxxas
support, 100% parts availability, and the
LaTrax Lifetime Electronics Warranty .
LaTrax 2-amp DC Peak Detecting
Teton includes a 2amp peak detecting charger for quick, convenient, hassle-free charging. The charger uses
a 12-Volt DC power outlet for charging on-the-go. The brilliant LED provides charging status while the battery charges.
The peak-detecting charger is optimized for charging Traxxas Power Cell NiMH battery packs. Just plug in the included
high-capacity Power Cell battery (6-cell, 7.2-volt NiMH) for a perfect charge, run after run. Everything you need to power-up
is in the box…even 4 AA alkaline batteries!

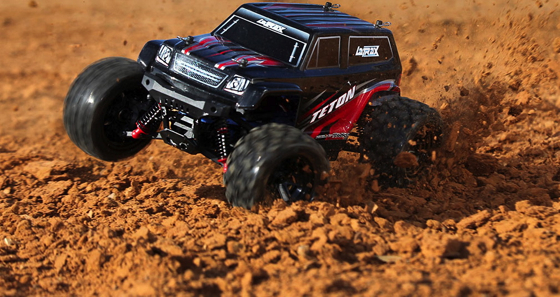

4-Wheel Drive Off-Road Versatility
Teton stays true to the mountain terrain it is named after with versatile 4-wheel drive off-road performance that takes you places
you might not expect. The simple and efficient shaft drive powers tall tires for increased ground clearance and aggressive traction.
True 4-wheel independent suspension keeps the tires planted over all different types of terrain from smooth sidewalks to gravel-bottom
creek beds. Teton fits easily in a backpack. Whether hiking or driving, how far can Teton take you on your outdoor adventure?

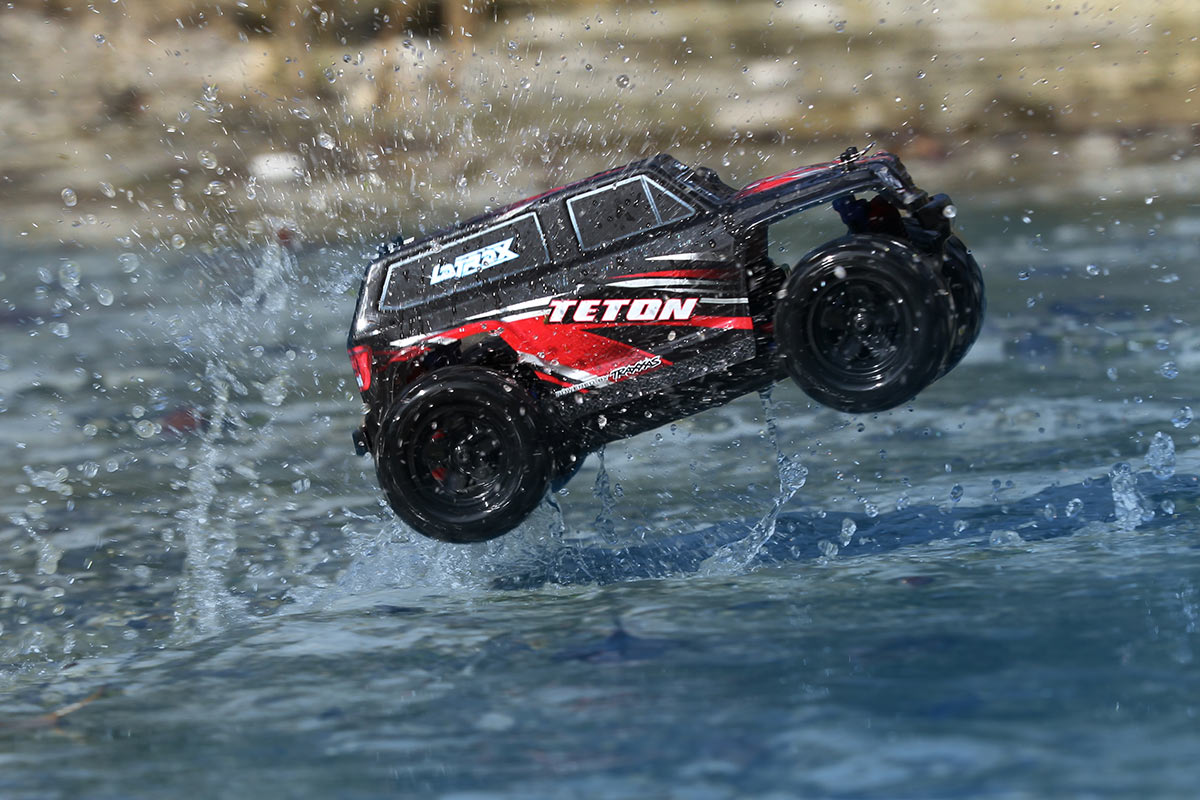

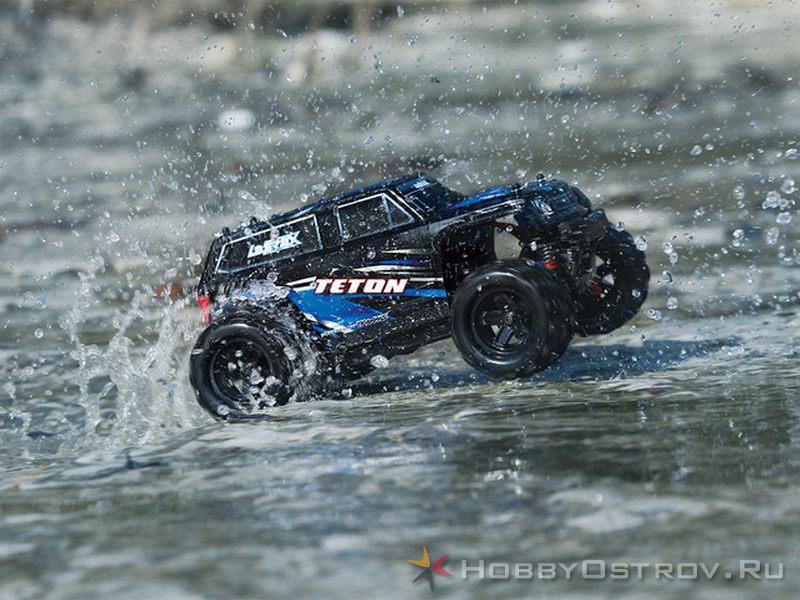

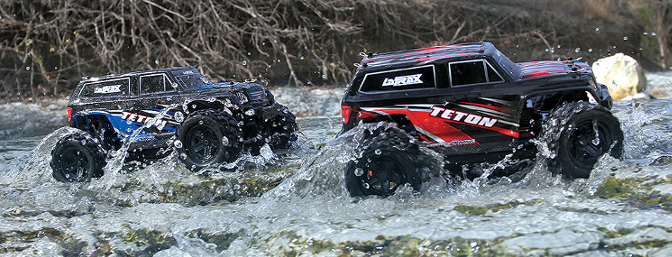

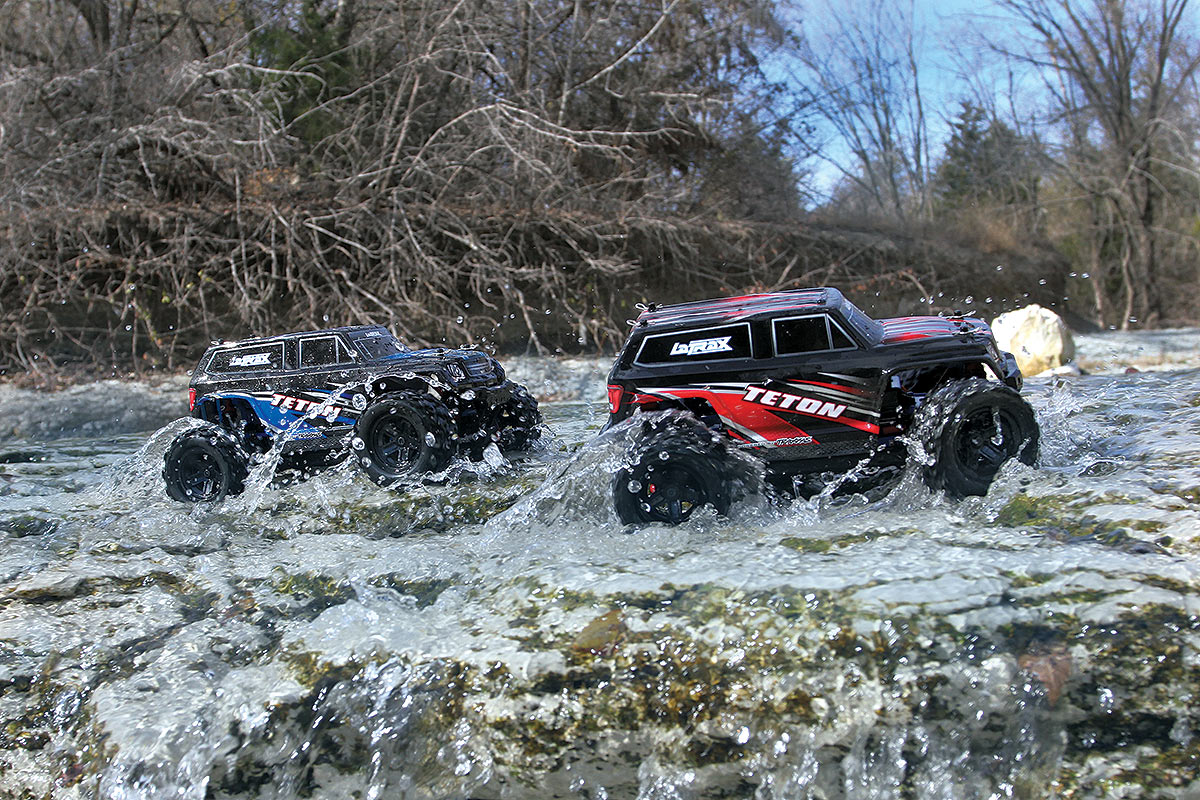

Waterproof, All-Weather Electronics
Waterproof, all-weather electronics means your fun doesn't stop just because of a little water. Teton doesn't slow down for puddles,
mud, ice, or snow! The waterproof servo and patent-pending weather-sealed receiver box let you keep going, even in wet conditions
that send other trucks back to the workbench. It's total driving freedom! Drive the Teton where you want, when you want—the only limit
is your imagination.

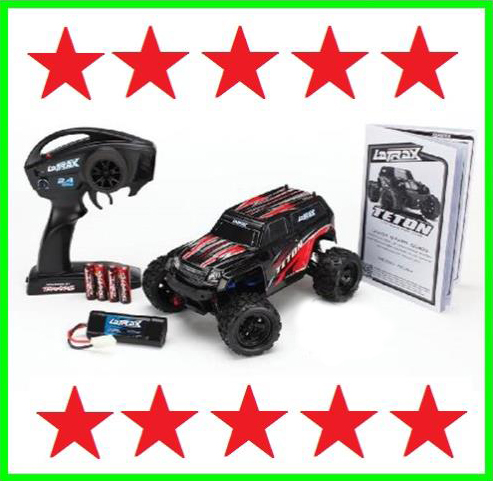

100% Fully Assembled and Ready-To-Explore™
The 1/18 LaTrax Teton is fully assembled with a 2.4GHz radio system, painted and decaled body, and easy instructions. A LaTrax 7.2V
rechargeable NiMH battery pack, charger, and 4 Traxxas Power Cell AA alkaline batteries are also included. Everything you need for fun is in the box.
QUICK FEATURES ON 1/18 LATRAX TETON (#76054-1)
1/18 LaTrax Teton ProGraphix® multi-colored painted body
Powered by Traxxas for award-winning performance and support
All-weather electronics, including the waterproof electronic speed control (patent pending)
Four-wheel drive for superior off-road versatility and grip
Powerful motor for aggressive acceleration and exciting speed
Ready-To-Explore with included 6-cell 7.2V NiMH battery pack and DC fast charger
Fully independent suspension for exceptional off-road handling and control
Smooth, Oil-filled shocks dampen the suspension motion
Front and rear gear differentials
Metal ring and pinion gears
Simple and efficient shaft drive
Durable construction that's built to last
Powered by Traxxas
LaTrax is backed with proven, world-class customer support from Traxxas. Fast and friendly answers to all your
questions are just a phone call or an e-mail away. Unmatched parts availability allows your LaTrax vehicle to be
serviced with parts and support from thousands of hobby dealers worldwide or from Traxxas directly. The LaTrax
Teton is powered by Traxxas so your investment is also protected by the
LaTrax Lifetime Electronics Warranty .
With LaTrax, you can count on Traxxas Support to go above and beyond to ensure that your R/C experience is easy and fun.
LaTrax Teton
Fully assembled and Ready-To-Run
ProGraphix® multi-colored painted body
Teton off-road tires mounted on black, 5-spoke wheels
Impact-absorbing front and rear bumpers
Adjustable-height body mounts
Waterproof, All-Weather Electronic Speed Control
Innovative all-weather design
Fully-proportional forward, reverse, and braking control
Programmable with three drive profiles:
Sport Mode – Forward / Brake / Reverse
Race Mode – Forward / Brake
Training Mode – 50% Forward / Brake / 50% Reverse
EZ-Set® push-button setup
Multi-color LED
Thermal shutdown protection
Efficient, low-loss MOSFET design
Smooth, high-frequency operation
Powerful 370 brushed motor
Includes LaTrax 7.2V 6-cell NiMH battery pack and charger
High-torque waterproof sub-micro steering servo
Weather-sealed receiver box (patent pending)

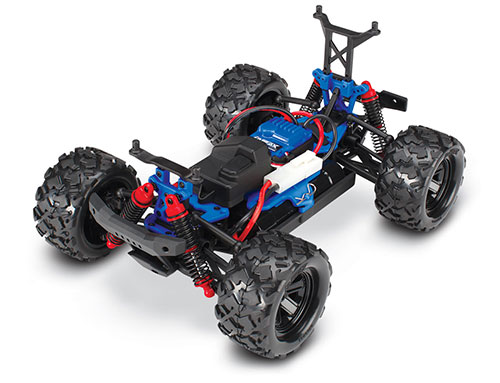

Full-time 4WD
Front and rear gear differentials with steel ring and pinion gears
Front C-hub design with universal driveshafts
Rear axle carrier with universal driveshafts
Oil-filled shocks with variable mounting positions
4-wheel fully independent suspension
Fiber-composite chassis
Speed control and receiver are securely fastened to chassis
Quick-release battery hold-down for fast battery pack changes
Award-winning Traxxas support and parts availability
2.4GHz Transmitter Features
2-channel transmitter
Servo reversing
Electronic steering trim controls
Low battery indicator
Internal antenna
Distinctive, ergonomic, contour grip
Powered by Traxxas
Lifetime Electronics Warranty
1/18 LATRAX TETON (BRUSHED) (#76054) SPECS
Length:
10.16" (258mm)
Front Track:
4.17" (106mm)
Rear Track:
4.23" (107.5mm)
Weight (with battery):
19.2oz (55g)
Weight (without battery):
13.3oz (430g)
Height (overall):
4.65" (118mm)
Wheelbase:
6.44" (163.5mm)
Wheel Diameter:
1.63" (41.5mm)
Shock Length (front/rear):
2.36" (60mm)
Ground Clearance:
1.18" (30mm)
Front/Rear Tires:
Teton
Front/Rear Wheels:
5-Spoke
Electronic Speed Control:
Waterproof Forward/Reverse ESC
Motor (electric):
370 Brushed
Transmission:
10T Pinion / 60T Spur
Gear Ratio (internal):
2.5:1
Overall Drive Ratio:
15:1 (Stock, Out-of-box)
Differential Type:
Hardened Steel Bevel (Ring and Pinion)
Gear Pitch:
0.5 Mod.
Chassis Structure/Material:
Molded Composite Nylon Monocoque
Brake Type:
Electronic
Drive System:
Shaft-Driven 4WD
Steering:
Bellcrank
Radio System:
2.4GHz Radio
Skill Level:
1
Battery Tray Dimensions:
102mm x 35mm x 18mm
Included Batteries:
7.2V 6-cell NiMH with Charger
Included Batteries:
4 "AA" (Transmitter)
MODEL 76054-1: 1/18 LaTrax Teton, fully assembled, Ready-To-Explore™,
인증: KCC-cri-cnj-6513-4Traxxas 4-amp or 2-amp DC Peak Detecting Fast Charger! #2975 WARNING - 운전중, 시동이 켜진상태에서 충전을 하시면 절대 안됩니다. 반드시 충전시에는 엔진 시동이 꺼진 상태에서 차량밖에서 하셔야 합니다. 차량의 시동이 켜진 상태에서 사용시(충전)에 과충전의 우려가 있습니다. DC충전기 Traxxas 4-amp or 2-amp DC Peak Detecting Fast Charger! #2975
위 충전기에 대한 주의사항 입니다.
신품 배터리(NIMH-니켈수소)를 사용 후(완전방전)에 충전 하시면 내부 저항 값이 생겨서 충전기가 충전 후
자동 멈춤 상태가 되며, 과충전되는 일이 없습니다.
TRAXXAS
A.변속기 세팅 방법
사전 작업으로 변속기의 커넥터가 수신기의 CH2에 꽂혀 있는지 확인.
3. 조종기를 켠다.
#정리: 변속기 셋팅버튼 3초를 누른 후 기다리면 빨간불이 한번 깜박이면 트리거(방아쇠부분)
B.로우 볼테이지 디덱션 셋팅(리포배터리를 이용) . 수소배터리를 전원으로 사용하시면 셋팅불가.
송신기 버튼은 조작하지 않고 변속기 ez-set버튼을 사용해서 셋팅.
먼저 변속기 "ON" 상태에서 EZ-SET 버튼을 약 5초~10초 동안 눌러주면 부저소리와 함께
빨강색은 리폴 저전압경고가 활성화 안되있음.
초록색은 리폴 저전압 경고가 활성화 되있음.
** 주의(8.4v 수소 배터리를 사용하면 변속기가 자주 멈추게되어 사용불가)
셋팅이 끝나면 수소배터리는 녹색불이 깜빡이며 변속기 작동이 안됩니다.
C.모드 변경방법
주행모드는 총 3가지가 있으며 다음과 같다.
데이터 1, 2, 3 MODE 설정
붉은색 LED가 한번 점등(데이터 MODE1)시 손을 때면 설정됨
붉은색 LED가 두번 점등(데이터 MODE2)시 손을 때면 설정됨
붉은색 LED가 세번 점등(데이터 MODE3)시 손을 때면 설정됨
new TQ. 조종기 셋팅법
