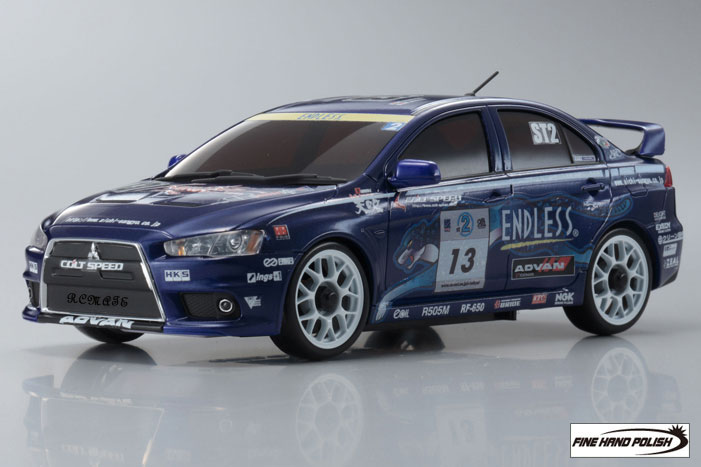

KY30569ZEA MINI-Z AWD MA-010 ASF 2.4GHZ MITSUBISHI LANCER EVOLUTION X ENDLESS ADVAN CS-X (조종기별매)









Precision palm-top size AWD chassis installed with ASF 2.4GHz unit!

Precision differential gears on front and rear on the shaft driven AWD power train combine with the four-wheel independent suspension for awesome performance, way above its scale. Whether on-road or off-road, AWD (all-wheel-drive) is regarded as one of the ideal racing platforms. The sophisticated mechanics of AWD have been condensed into a palmtop size chassis and combined with the ASF 2.4GHz control unit for the ultimate in control stability and safety. Body sets that suit dropped chassis styles can also be installed, making these models even more realistic. Also, this kit is packaged without transmitter, making it ideal for those who already have an ASF 2.4GHz MINI-Z Racer.



Sophisticated mechanics include midship motor mount, shaft drive AWD and 4-wheel independent suspension.



Resin universal swing shafts with metal cores are equipped on all wheels and realize unobstructed suspension movement for efficient transfer of drive power.



Uniquely shaped gear teeth on the crown and pinion gear drive the propeller shaft on the precision 3-bevel gear differentials, efficiently transferring power to all four wheels.



Toe-in angles on front and rear can be adjusted with the use of optional parts. Simple tie-rod attachment / detachment for easy maintenance.



Includes collars for adjusting chassis height, enabling the chassis to be dropped. Also includes 4 pinion gears and 3 spur gears for a wide range of gear ratio settings.



Front features bump stop to avoid body contact with the wheels and regulate suspension stroke.

  • ASF 2.4GHz R/C system automatically scans for open frequencies to guarantee control, safe from radio interference.
  • Simply bind or pair the PERFEX KT-18 (sold separately) with the chassis and it is ready to use.
  • Eliminates need for frequency crystals and allows up to 40 cars to be run at the same time.
  • One transmitter can be paired with multiple 2.4GHz MINI-Z cars.
  • Ultra fast signal processing speed results in almost instantaneous control response.
  • FET motor control amp supercharges speed with double the capacity of the previous RA-19 version.
  • Equipped with I.C.S. terminals.
  • Features LED indicator that lights to show power status.
  • Ultra-fine 1/100mm finish.
  • Differential units can be removed with just four screws on the front and six on the rear.
  • 4-wheel independent suspension uses king pin struts with built-in coil springs.
  • Features the controlled drift of a true AWD machine.
  • Only 5g heavier than the MR-02 chassis, despite the AWD and independent suspension.
  • Uses the narrowest 65mm chassis design so the Mini-Z 01/015 body styles can be fitted.
  • Can be easily converted to the Mini-Z Racer M and L size to match your existing MINI-Z body. (Some body styles may not be compatible).
< About Fine Hand Polish >



 A new surface-finishing technology that provides a hard glossy finish in bright lustrous colors. The hardened surface protects the paintwork from marks and dirt so the beautiful car body is easily maintained in all its original glory.


About the MITSUBISHI LANCER EVOLUTION X?ENDLESS ADVAN CS-X?
Racing spec auto parts such as brakes made by ENDLESS are relatively well known on the motor sports scene and if you watch motor sports the chances are that you will have seen the ENDLESS logo. The ENDLESS Sports Racing Team migrated from the Lancer Evolution IX to the X to compete in the ST2 Class of the Super Taikyu (endurance) series. Competing amongst the many proven Evo IX models in the same class, the ENDLESS ADVAN CS-X issued a exciting challenge and brought a new dynamic to every race in the series with the latest X model.
걙Mini-Z AWD and MINI-Z Interchangeability걚
Body Fitting
갋The Mini-Z AWD chassis width is the same as the MINI-Z Racer MR-015.
 Most bodies for the M and L-size wheelbases of the MR-01 and MR-015 chassis are compatible with the AWD.
Wheels
갋Mini-Z AWD features specially designed wheels. These wheels are not compatible with previous versions of the MINI-Z.
Auto Scale Collection Body Sets
갋Current Auto Scale Collection (for MR-015) wheels are not compatible with the Mini-Z AWD.
 Please use with multi offset wheels.


걙 Body/Chassis Set Contents 걚

  • Fully assembled chassis with R/C unit installed
  • Pinion Gears: 4 types, Spur Gears: 3 types (3 wheelbase settings for total of 6)
  • Chassis height adjustment collars
  • Wheel wrench


* Perfex KT-18 transmitter

걙 Required for Operation 걚

  • Perfex KT-18 transmitter
  • 4 x AAA-size batteries for transmitter
  • 4 x AAA-size batteries (alkaline or Ni-MH) for chassis
Chassis Technical data
Length
127.5mm걁M걂갂131.5mm걁L걂
Width
65?72mm 걁67mm걂
Height
43mm
Ground Clearance
4mm
Wheelbase
90mm걁M걂갂94mm걁L걂
Tread (F/R)
56.5?63.5mm?56.5?61mm or F?R 58.5mm
Tire(F/R)
꺍 25?8.5mm 2pcs?꺍 25?11mm 2pcs or 꺍 25?8.5mm 4pcs
Gear Ratio
7,2?6.4?6.0?5.7?5.3?5.0?4.5갌1
Weight
135g (approx.)
Motor
130-Class

MITSUBISHI LANCER EVOLUTION X?ENDLESS ADVAN CS-X Technical data
Length
159mm
Width
70mm
Height
50mm
Wheelbase
94mm(L)
Tread (F/R)
56.5mm?56.5mm
Tire(F/R)
꺍 25.0mm?8.5mm?꺍 25.0mm?8.5mm
Gear Ratio
7.2?6.4?5.7?5.3?5.0?4.5:1
Weight
130g
No crystals needed! 2.4GHz system blocks interference.

Using 2.4GHz frequency, the transmitter and chassis automatically lock on to open bands with the 2.4GHz ASF system. Realizes a stable environment without interference so you can have confidence in your radio system''''s response. Allows up to 40 cars to be raced at the same time. Simple pairing process (registering transmitter with the chassis) also enables a single transmitter to be used with multiple chassis. The next generation of proportional radio control systems starts here.
*Set does not include R/C System.
