결제를 쉽게 하시려면 이 링크로 결제 부탁드립니다.
2가지 색상 바로 선택가능!!!

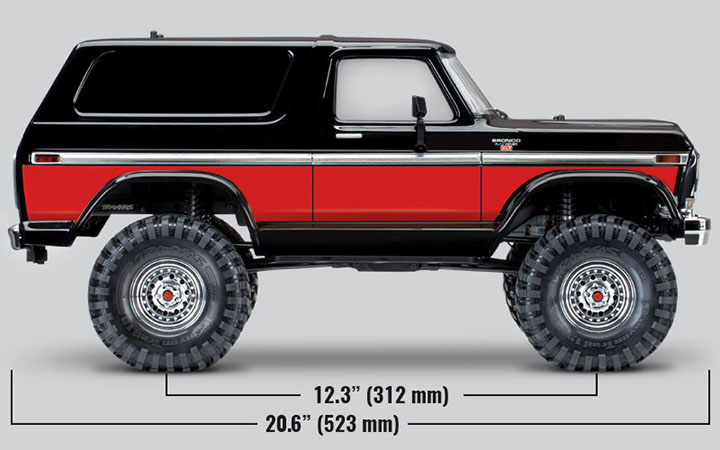

| Length: | 20.57 inches (523 mm) |
|---|
| Front Track: | 9.78 inches (249 mm) |
|---|
| Rear Track: | 9.78 inches (249 mm) |
|---|
| Ground Clearance: | 3.14 inches (80 mm) |
|---|
| Weight: | 6.42 pounds (2.91 kg) |
|---|
| Height: | 10.47 inches (266 mm) |
|---|
| Wheelbase: | 12.28 inches (312 mm) |
|---|
| Approach Angle: | 63.82° |
|---|
| Departure Angle: | 43.22° |
|---|
| Breakover Angle: | 59° |
|---|
| Front Shock Length: | 3.54 inches (90 mm) |
|---|
| Rear Shock Length: | 3.54 inches (90 mm) |
|---|
| Front Wheels: | 1.9″ x 1.02″ (49 x 26 mm) |
|---|
| Rear Wheels: | 1.9″ x 1.02″ (49 x 26 mm) |
|---|
| Front Tires: | 4.64″ x 1.89″ (118 x 48 mm) |
|---|
| Rear Tires: | 4.64″ x 1.89″ (118 x 48 mm) |
|---|
| Hex Size: | 12 mm |
|---|
| Speed Control: | XL-5™ HV |
|---|
| Motor (electric): | 21T Reverse Rotation |
|---|
| Transmission: | 2-speed high/low, remote shifting |
|---|
| Gear Pitch: | 32 pitch |
|---|
| Differential Type: | 4 gear, remote locking |
|---|
| Chassis Structure / Material: | Steel ladder frame with Nylon composite crossmembers |
|---|
| Brake Type: | Electronic “Hill Hold” |
|---|
| Drive System: | Shaft driven 4WD |
|---|
| Steering: | Chassis mounted servo |
|---|
| Servo: | 2075X metal gear |
|---|
| Transmitter: | TQi™ 2.4 GHz 4-channel transmitter |
|---|
| Receiver: | 6533 |
|---|
| Skill Level: | 1 |
|---|
| Battery Tray: | 159 L x 47 W x 23/26 mm H |
|---|
- Motor Spec
| Type: | High-torque brushed motor |
|---|
| Size: | 550 |
|---|
| Weight: | 13.76 ounces (390 g) |
|---|
| Length: | 3.071″ (78 mm) overall length, 2.25″ (57 mm) can length, 1.532″ (39 mm diameter) |
|---|
| Turns: | 21T reverse rotation |
|---|
| Voltage: | 16.8 volts |
|---|
- ESC Spec | Input Voltage: | 6–7 Cells NiMH, 2–3s LiPo |
|---|
| Case Size: | 1.23″ W x 2.18″ D x 1.04″ H |
|---|
| Weight: | 2.6 ounces (74 g) |
|---|
| Motor Limit: | 21-turns (550 size) |
|---|
| On Resistance Forward: | 0.004 ohms |
|---|
| On Resistance Reverse: | 0.004 ohms |
|---|
| Peak Current - Forward: | 100 amps |
|---|
| Peak Current - Reverse: | 100 amps |
|---|
| Braking Current: | 60 amps |
|---|
| Continuous Current: | 18 amps |
|---|
| BEC Voltage: | 6.0 volts |
|---|
| BEC Current: | 1 amp |
|---|
| Power Wire: | 14 gauge / 5″ |
|---|
| Input Harness Wire: | 26 gauge / 14.5″ |
|---|
| Transistor Type: | MOSFET |
|---|
| PWM Frequency: | 1700 Hz |
|---|
| Low Voltage Detection (LVD): | 2-Stage indicators, switchable (on or off) |
|---|
| Thermal Protection: | Thermal shutdown |
|---|
| Profile selection: | - Sport Mode: 100% FWD, 100% brakes, 100% REV
- Race Mode: 100% FWD, 100% brakes, no REV
- Training Mode:* 50% FWD, 100% brakes, 50% REV
- Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
- Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
|
|---|
| Single-button setup: | Yes, Traxxas EZ-® |
|---|
| * Patented |
|
