CB3370 Traxxas Velineon VXL-3M Waterproof Brushless Power System
- 노말 미니레보에 사용시 피니언기어는 28T 를 추천합니다^^
http://rclife.co.kr/product_html/product_detail.asp?product_number=50656
위 주소를 클릭하시면 바로 이동합니다~!!
- 트랙사스의 1/16 미니 이레보/슬래쉬 VXL 버젼에 사용되는 브러쉬리스 세트입니다.
- 변속기와 모터가 세트로 구성 된 브러쉬리스 콤보 세트입니다^^
Velineon VXL-3m Features:
- Traxxas High-Current Connector maintains pure, unrestricted power flow from the battery to the brushless power system.
- Built-in two-stage low voltage detection for Lithium Polymer (LiPo) battery use provides a clear signal to the driver that the battery pack is nearing its minimum voltage threshold.
- Wide range of battery options, including 6-12 cell NiMH or NiCad packs
- The patent-pending Training Mode?is an exclusive Traxxas feature that reduces the overall power output of the VXL-3m by 50%, making it easier for new or younger drivers to control their model. When theyre ready, simply change profiles to unleash full-throttle action.
- Advanced circuit design allows sensorless brushless motors to operate with the smoothness and precision of the best brushed systems. Theres no need for additional sensor wiring and hardware complexity.
- The EZ-Set?push-button setup operates and programs just like other Traxxas speed controls such as the XL-5. This eliminates the need to learn a new set of procedures.
- The VXL-3m is programmable with three drive profiles:
- Sport Mode ?Fwd / Brake / Rev
- Race Mode ?Fwd / Brake
- Training Mode??50% Fwd / Brake / 50% Rev
- Multi-color LED provides clear feedback
- Two-stage thermal shutdown protection protects the VXL-3m from overheating.
- Locked Rotor Protection?prevents system damage by cutting power if the vehicle is stuck or the motor is bound.
- Battery Over-Voltage Protection?causes the ESC to go into failsafe mode if the maximum input voltage is exceeded.
- Water resistent case design uses rubber seals and o-rings to protect against damage caused by water and moisture.
- Micro-fin aluminum heatsink dissipates heat.
- MOSFET design provides high-current output (326 amp peak) with incredibly low resistance (.0005 (Ohm)).
- Gold plated 3.5mm bullet connectors on 16-gauge Maxx?Cable flow full power to the motor without performance-strangling resistance.
Velineon 380 Features:
- Ultra high-temperature sintered Neodymium magnets provide
- Massive torque and linear power
- Optimized for power and efficiency in 1/16th scale vehicles
- Consistent, high-power output, run after run
- Low-maintenance, unique Traxxas design
- Efficient, high-speed ball bearings
- Precision-balanced rotor
- 8-Turn, 4000KV
- Rebuildable
- Hex hardware
- Brilliant blue-anodized finish
- Silicone steel laminations
- Delivers more power than comparable brushed motors
VXL-3M Specifications:
Input Voltage: 6 to 12 cells NiMH, 2S to 3S LiPo
Case Size: 26.5mm W x 46.5mm D x 22mm H
Weight: 38 grams
Motors: Sensorless Brushless
Motor Limit: None
On Resistance: 0.0005 Ohms
PWM Frequency: 12,000Hz
Peak Current: 326A
Continuous Current: 52A
BEC Voltage: 6.0V DC
Motor / Battery Wiring: 16-Gauge Maxx?Cable
Transistor Type: MOSFET
Low Voltage Detection: 2-Stage indicators, switchable (on or off)
Thermal Protection: 2-Stage thermal shutdown
Single-button setup: Yes, Traxxas EZ-Set?BR>Battery Input Connector: Traxxas High-Current Connector
Motor Connector: TRX 3.5mm Bullet Connectors
Velineon 380 Specifications:
Type: Sensorless Brushless
kV (RPM/Volt): 4000kV (8T)
Magnet Type: High Temp Sintered Neodymium
Connection Type: TRX 3.5mm Bullet
Wire Size: 16g Maxx Cable
Continuous Current: 25A
Max Current: 50A Burst
Max RPM: 50,000
Weight: 140g (4.94oz)

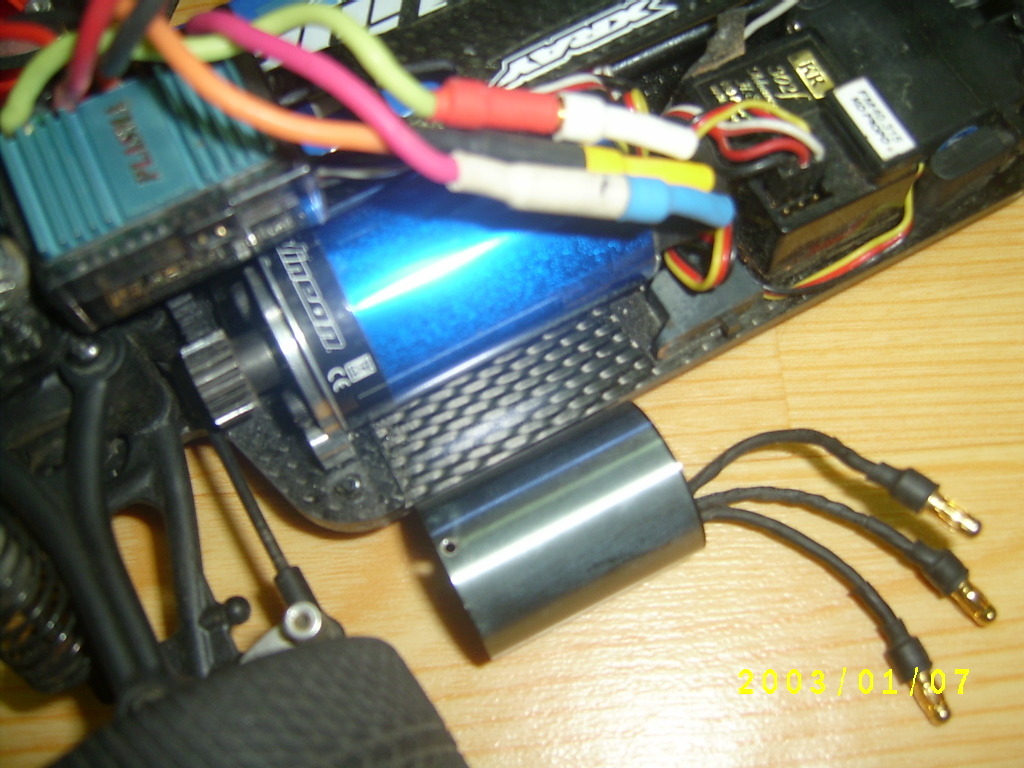

아래는 참고사진입니다 ^^
위내용은 미니레보와 슬래쉬...그리고 m18t 에 장착한 사진이랍니다...장착이 되어 날라다닌다고 합니다...;;
벨리네온 380브러쉬리스용 싸이즈의 최고봉입니다..!!
중요 : 미니서밋 540 기본에서 => 380 브러쉬리스로 변경시
필요한 제품으로 아래제품이 추가로 필요합니다!!^^*
|
|
TRAXXAS AX7077 |
5,100원  51점 |
|
|
|
TRAXXAS AX7060 |
11,500원 115점 |
|
|
|
TRAXXAS AX7090 |
7,200원 72점 |
|
