TD-002 0A big hitless Electric Speed Controler 브러쉬드 변속기

(1/10 드리프트 차량 및 표준사이즈보트에 적용 )

* 1/10 드리프트 차량 에 적용

   본제품은 브러쉬드임으로 리포사용을 권장하지않습니다.

   (we do not Recommend use Lipo batteries due to this is Brushed ESC.)

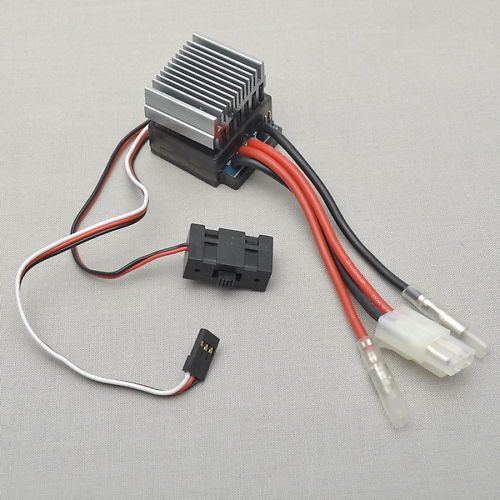

Product Name:HSP 320A Brushed ESC for RC Car boat Upgrade version

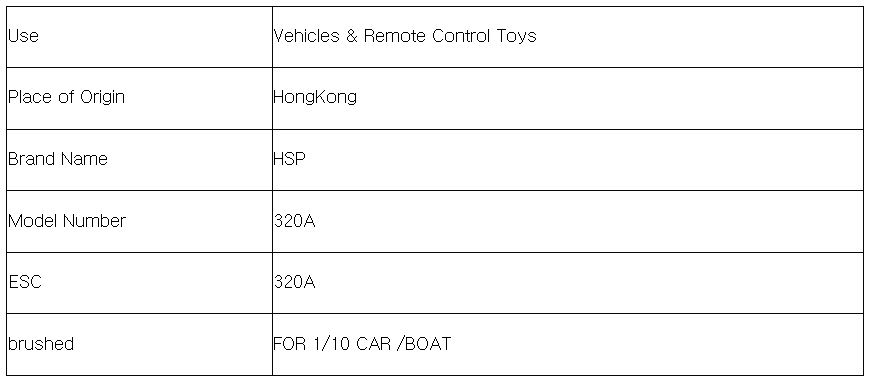

Quick Details:

Use

Vehicles & Remote Control Toys

Place of Origin

HongKong

Brand Name

HSP

Model Number

320A

ESC

320A

brushed

FOR 1/10 CAR /BOAT



HSP 320A Brushed ESC for RC Car boat Upgrade version

HSP 320A Brushed ESC for RC Car boat Upgrade version



  • The newest 320A  ESC for 1/10/12/18 RC Car Truck Boat

  • 100% Brand new

  •  Operating system : Forward, reverse,  and brake operations are all liner

  • Power requirement : Nicd battery 6~7 cells  (7.2-8.4V)

  • Weight: 45g (including connectors and  switches)

  • PWM frequency : 1.5KHZ (fixed)

  • Setting : One-touch input by pushbutton  switch set data is saved to built-in EEPROM

  • Nicd battery 6cells (7.2V)

  • BEC voltage : 5.6V

  • Current capacity (FET rating) : Forward =  320A,Reverse = 160A,Break=250A

  • Motor Limit: must work with brushed motor  , must work with over 20 turns motor

  • Size:L34mm, W34mm,  H15.2mm (Besides Fan parts)

  • Fearture:
    -Forward 300A Reverse 100A High powerful and easy to accelerate
    -All components meet international safely regulations in high reliable quality
    -Designed with 2nd generation of setting up for easy operation
    -Self-detecting for malfuncations for better stable performance

  • Package:320A Brushed ESC for 1/10/12/18 RC  Car Truck Boat  x1set
